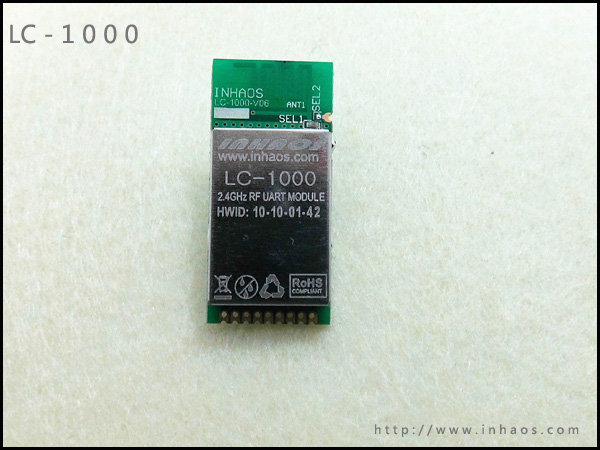

LC-1000 2.4GHz RF UART Module released
Features
2.4G wireless data transmission module
Full duplex transparent serial port
Configurable baud rate, range: 2400bps to 57600bps
Add wireless communication without any RF knowledge requirement
Frequency range: 2400-2483.5 MHz ISM
4 bytes RF TX/RX configurable address
Maximum duplex RF air data rate reaches 38.4kbps
Transmission distance more than 60 meters
Connection type: Connector or SMD, suitable for DIY or mass production
Suitable for high-speed data transmission with low power consumption
Featured PSM (Power Saving Mode) Mode, can balance high-speed data transmission and power consumption
Configurable sleep time in PSM Mode: 20ms to 65000ms
Operating voltage: DC 2.7V to 3.6V, rated voltage 3.3V
Pin level Compatible both 3.3 V and 5 V TTL level
Average working current (@DC 3.3V):
NML Mode: 26mA
PSM Mode: 1.6mA
Typical Application
Wireless audio transmission
Handheld device
Wireless monitoring and control System
Remote controlled toys
Short distance wireless data transmission
1 to N wireless data acquisition
