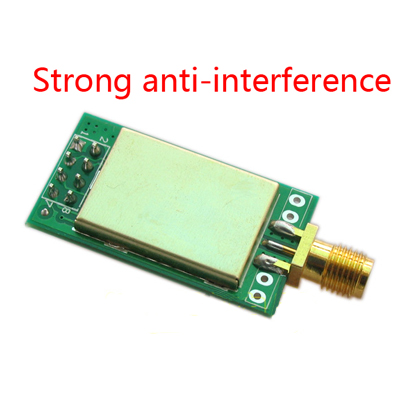

RF-1001DP5 20dBm 2.4G RF Module
Maximum power： 20dbm
Measured distance: 1157m@250K
Air Rate: 250K/1M/2M
Antenna: External antenna
Working frequency: 2.4000 – 2.525GHZ
Communication Interface: SPI, the maximum rate is 10Mbps
Introduce
RF-1001DP5 is our latest 2.4G wireless communication
module. Currently, it has a stable mass production. It is suitable for a
variety of scenarios. nRF24L01P is the master chip of RF-1001DP5 module , which
is imported from the Norwegian. And the module is
equipped with 20dBm power amplifier chip which is import from US, these enables
the module to achieve the maximum transmit power 100mW (20dBm) and enhance the
sensitivity to 10dBm simultaneously. Our design make the transmission distance
of the module over the nRF24L01P itself more than 10 times.
Parametric Description
| Num |
Parametric Name |
Detailed Description |
| 1 |
Main chip |
nRF24L01P, from Norway |
| 2 |
Module size |
|
| 3 |
Interface |
2*4*2.54mm, you can use the universal
plate and DuPont line |
| 4 |
Supply voltage |
2.0-3.6V DC. Never exceeds 3.6V ! |
| 5 |
Communication voltage |
0.7VDD-5VDC, VDD is the supply voltage of
module |
| 6 |
Measured distance |
1750m@250K |
| 7 |
Maximum power |
20dbm |
| 8 |
Air Rate |
250K/1M/2M |
| 9 |
Shutdown Current |
About 1uA. Test Conditions: CE=0,
power-down mode, VDD=3.0V. |
| 10 |
Power Level |
4 adjustable rating |
| 11 |
Transmitting current |
About 95mA |
| 12 |
Receiving current |
About 20mA |

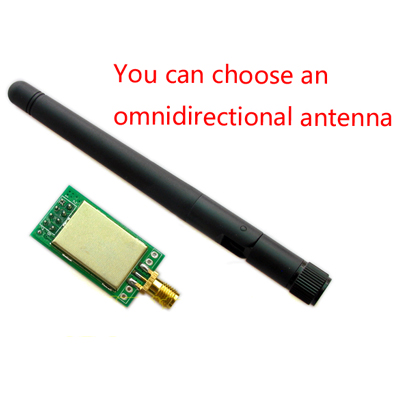

| 13 |
Antenna |
External antenna , SMA interface external
screw bore |
| 14 |
Communication Interface |
SPI, the maximum rate is 10Mbps |
| 15 |
Transmitting length |
Single data packet is 1-32 bytes |
| 16 |
Receiving length |
Single data packet is 1-32 bytes |
| 17 |
RSSI Support |
Does not support the true meaning of RSSI,
supports packet loss statistics |
| 18 |
Reception sensitivity |
-94dbm@250Kbps |
| 19 |
Work temperature |
-30 - +85℃ |
| 20 |
Work humidity |
Relative humidity :<90% |
| 21 |
Storage temperature |
-40 - +120℃ |
| 22 |
Working frequency |
Adjustable value: 2.4000 – 2.525GHZ. Stepping
value: 1MHz |
Notice:
1. Avoid body touch the electronic components.
2. Please ensure that the power supply has a smaller ripple , and must avoid frequent significant jitter.
3. Antenna mounting structure has a greater impact on module performance , please ensure the antenna exposed.
4. Avoid harmonic interference from other wireless devices bands
5. Please make the RF module stay away from the crystal.
