  • RF-2423 2.4GHz Wireless transceiver Module
  • RF-2423 2.4GHz Wireless transceiver Module
  • RF-2423 2.4GHz Wireless transceiver Module

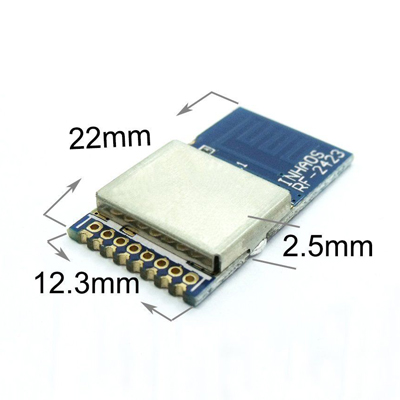

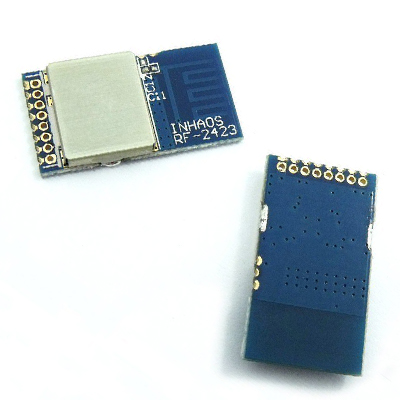

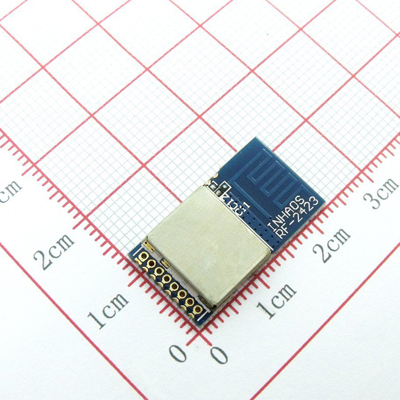

RF-2423 2.4GHz Wireless transceiver Module

RF-2423 2.4GHz Wireless transceiver Module

Programmable output power
Low power consumption
Variable payload length from 1 to 32bytes
Automatic packet processing
6 data pipes for 1:6 star networks
1.9V to 3.6V power supply
4-pin SPI interface with maximum 8 MHz clock rate




Introduce

   RF-2423 is upgrade version from RF-2400 serial modules, RF-2423 add 250Kbps air rate support and downward compatible to RF-2400.


   We have detailed document to instruction user to use new module RF-2423 , or migrating code from RF-2400 .

The RF-2400 serial and RF-2423 serial relation as below:
---------------------------------------------------------------------------------------------------------
SPI Interface module:
BK2421 based: RF-2400P RF-2400W RF-2400-V03 RF-2400-NANO
BK2423 based: RF-2423

RF Module with C8051F330 MCU:
BK2421 based: RF-2410M
BK2423 based: RF-2423M

USB RF Module with C8051F321 MCU:
BK2421 based: RF-2410U
BK2423 based: RF-2423U

---------------------------------------------------------------------------------------------------------


RF-2423 advantage:

Mature design, can be directly used for mass production
Metal shield, avoid touching the components, make it more stable
Low cost, surprised price when your order over 1Kpcs, please contact us

Features

   2400-2483.5 MHz ISM band operation

   Support 250Kbps, 1Mbps and 2 Mbps air data rate

   Programmable output power

   Low power consumption

   Variable payload length from 1 to 32bytes

   Automatic packet processing

   6 data pipes for 1:6 star networks

   1.9V to 3.6V power supply

   4-pin SPI interface with maximum 8 MHz clock rate

Applications

   Wireless PC peripherals

   Wireless mice and keyboards

   Wireless gamepads

   Wireless audio

   VOIP and wireless headsets

   Remote controls

   Consumer electronics

   Home automation

   Toys

   Personal health and entertainment


File Name File Size Release Date Click
DS-RF-2423-V10-EN 446.37 KB 05/07/2013 3,730
RF-2423 SOC - BK2423 Datasheet v2.0 923.9 KB 05/07/2013 6,347
RF-2423 SOC - BK2423 Application Notes v2.0_en 673.33 KB 05/07/2013 5,315
DS-RF2423U-V10-EN RF-2423U 2.4G USB Receiver 664.77 KB 05/14/2013 3,839
AN0008-BK2423 Communication In 250Kbps Air Rate 459.65 KB 05/07/2013 3,559
DS-RF-2423M-V10-EN 447.39 KB 05/19/2013 3,661
AN0008 code - BK2423 Communication In 250Kbps Air Rate 87.89 KB 06/13/2013 3,681
DOC-RF-2423-V01-EN Datasheet *pdf 592.66 KB 02/20/2014 3,455
DS-RF-1001DP3-V01-EN * PDF 209.71 KB 12/20/2014 2,368
DS-RF-1001DP4-V01-EN *pdf 204.59 KB 12/22/2014 2,432
DS-RF-1001DP5 -V01-EN *pdf 197.93 KB 12/22/2014 2,479
DS-RF-1001D-V01-EN *pdf 202.16 KB 12/22/2014 2,319
DS-RF-1001S-V01-EN *pdf 197.44 KB 12/22/2014 2,149
DS-RF-1001SP2-V01-EN *pdf 223.88 KB 12/22/2014 2,660
DS-RF-1001SMA -V01-EN *pdf 204.98 KB 12/22/2014 2,164
AN_16005_Arduino Development Board Selection Guide 513.77 KB 05/10/2016 6,834
LC-2000-Debugger Release V11 867.96 KB 08/05/2016 2,707
LC-3000(PA) M2M RF UART Module Datasheet 1.09 MB 06/04/2016 2,874
Easy Connection M2M RF UART Module Datasheet 457.11 KB 06/04/2016 2,719
AN-16008_LC-3000(PA)_Debugger_Users Guide 591.9 KB 06/13/2016 2,463
AN-16008_LC-3000(PA) Debugger 2.06 MB 06/13/2016 2,568
DOC-TX5-V01-20160614 315M/433M ASK Transmitter Datasheet 381.34 KB 07/20/2016 2,458
DOC-LC-2000(PA)-P2P-V13-20220302 419.16 KB 03/29/2016 2,861
