RF-1001DP4 20dBm 2.4G RF Module
Maximum power： 20dbm
Measured distance: 1157m@250K
Air Rate: 250K/1M/2M
On-board PCB antenna
Working frequency: 2.4000 – 2.525GHZ
Communication Interface: SPI, the maximum rate is 10Mbps

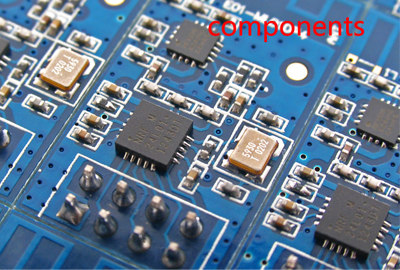

Introduce
RF-1001DP4 is our latest 2.4G wireless communication module. Currently, it has a stable mass production. It is suitable for a variety of scenarios. nRF24L01P is the master chip of RF-1001DP4 module , which is imported from the Norwegian. And the module is equipped with 20dBm power amplifier chip which is import from US, these enables the module to achieve the maximum transmit power 100mW (20dBm) and enhance the sensitivity to 10dBm simultaneously. Our design make the transmission distance of the module over the nRF24L01P itself more than 10 times.
Parametric Description
| Num |
Parametric Name |
Detailed Description |
| 1 |
Main chip |
nRF24L01P, from Norway |
| 2 |
Module size |
|
| 3 |
Interface |
2*4*2.54mm, you can use the universal
plate and DuPont line |
| 4 |
Supply voltage |
2.0-3.6V DC |
| 5 |
Communication voltage |
0.7VDD-5VDC, VDD is the supply voltage of
module |
| 6 |
Measured distance |
1157m@250K |
| 7 |
Maximum power |
20dbm |
| 8 |
Air Rate |
250K/1M/2M |
| 9 |
Shutdown Current |
About 1uA. Test Conditions: CE=0,
power-down mode, VDD=3.0V. |
| 10 |
Power Level |
4 adjustable rating |
| 11 |
Transmitting current |
About 95mA |
| 12 |
Receiving current |
About 20mA |
| 13 |
Antenna |
On-board PCB antenna |
| 14 |
Communication Interface |
SPI, the maximum rate is 10Mbps |
| 15 |
Transmitting length |
Single data packet is 1-32 bytes |
| 16 |
Receiving length |
Single data packet is 1-32 bytes |
| 17 |
RSSI Support |
Does not support the true meaning of RSSI,
supports packet loss statistics |
| 18 |
Reception sensitivity |
-94dbm@250Kbps |
| 19 |
Work temperature |
-30 - +85℃ |
| 20 |
Work humidity |
Relative humidity :10%～90% |
| 21 |
Storage temperature |
-40 - +120℃ |
| 22 |
Working frequency |
2.4000 – 2.525GHZ |
Notice:
1. Avoid body touch the electronic components.
2. Please ensure that the power supply has a smaller ripple , and must avoid frequent significant jitter.
3. Antenna mounting structure has a greater impact on module performance , please ensure the antenna exposed.
4. Avoid harmonic interference from other wireless devices bands
5. Please make the RF module stay away from the crystal.
